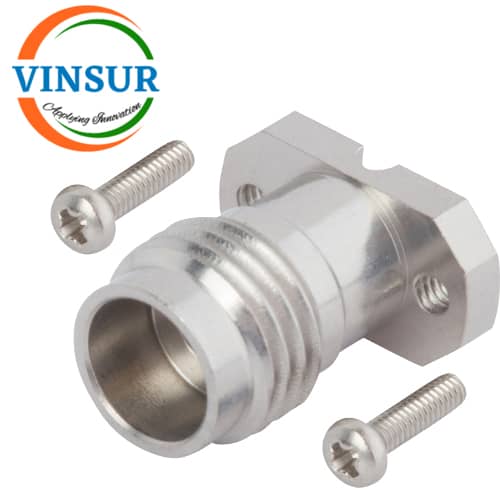

VSW-11S21340 — RF CONNECTOR – 50OHMS , 1.85MM FEMALE ,STRAIGHT, 2-HOLE FLANGE SCREW TYPE CONNECTOR
- RF CONNECTOR: 50Ω
- 1.85mm FEMALE
- STRAIGHT
- PCB Vertical Launch
Click Here to download the datasheet
Description
1.85mm connectors are built in male or female gender with 50 Ohm impedance. 1.85mm connectors are available in threaded, 2 hole panel or mount less options. These 1.85mm connector designs include clamp/solder or field replaceable attachment methods.
| CONNECTOR SPECIFICATION | |
| Connector name | 1.85mm |
| Gender | Female(Jack) |
| Orientation | Straight |
| Mounting Type | PCB Vertical Launch |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Coupling | Threaded |
| Insulator Material | PTFE |
| Body Style | 2 Hole |
| Number of Ports | Single |
| VSWR | ≤1.2 |
| Max Frequency | DC to 65GHz |
| Temperature Rating | -65°C to +165°C |
