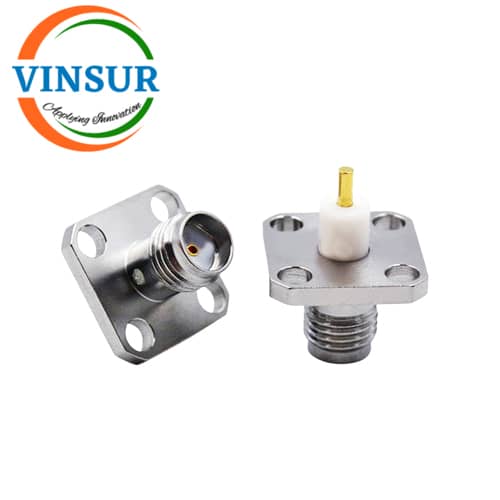

11521491-55 — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT ,4-HOLE FLANGE 4MM EXTEND TEFLON PCB SOLDER TYPE CONNERCTOR
- RF CONNECTOR: 50Ω
- SMAÂ FEMALE
- STRAIGHT
- 4-HOLE FLANGE
- PCB
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Solder type |
| Impedance (Ohms) | 50 |
| Body Finish | Stainless Steel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| VSWR | 1.35 max |
| Insulator Material | PTFE |
| Connector | SMA |
| Coupling Mechanism | Threaded |
| Mounting Feature | 4-Hole flange |
| Max Frequency (GHz) | 18 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
| contact resistance | Center conductor ≤3mΩ,Outer conductor ≤2mΩ |
| insulation resistance | ≥5000MΩ |
| Durability | ≥500 |
