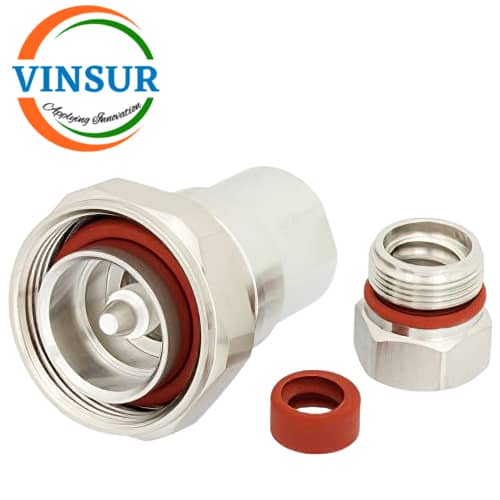

11D1102J– RF CONNECTOR – 50OHMS , 7-16 MALE , STRAIGHT , CLAMP TYPE , 1-2 INCH SUPERFLEX CABLE
- RF Connector: 50Ω
- 7-16 Din
- Plug (Male)
- Straight
- 1-2 Inch super flex Cable
Applications:
- Wireless Infrastructure
- Lightning Protection
- Base Stations
- Satellite Communications
- Antenna Systems
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Type | 7/16 |
| Orientation | Straight |
| Contact Termination | Solder |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Cable Type | 1-2 Inch super flex Cable |
| Max Frequency (GHz) | DC-3GHz |
| VSWR | ≤1.20 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
