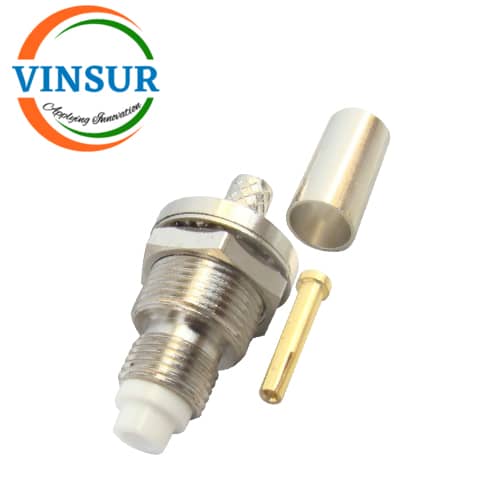

11H21215 — RF CONNECTOR – 50 OHMS , FME FEMALE , STRAIGHT , BULK HEAD REAR MOUNT , CRIMP TYPE , RG58,142 CABLE
- RF CONNECTOR: 50Ω
- FME FEMALE
- STRAIGHT
- BULKHEAD
- CRIMP TYPE
- RG-58 CABLE
Click Here to download the datasheet
Description
FME connectors are a miniature 50 ohm series offering performance from DC to 200 MHz This connector series is used for mobile antenna applications adapted for UHF, Mini UHF, TNC, BNC and N-Type connector interfaces using between-series adapters. It is primarily used with RG-58 coaxial cables
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack(Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Features | Bulk Head |
| Insulator Material | PTFE |
| Cable Type | RG58 |
| Max Frequency | DC – 1 GHz |
| VSWR | ≤1.5 |
| Polarity | Standard |
| Min. Temp. (Celsius) | −40°C |
| Max. Temp. (Celsius) | +85°C |
