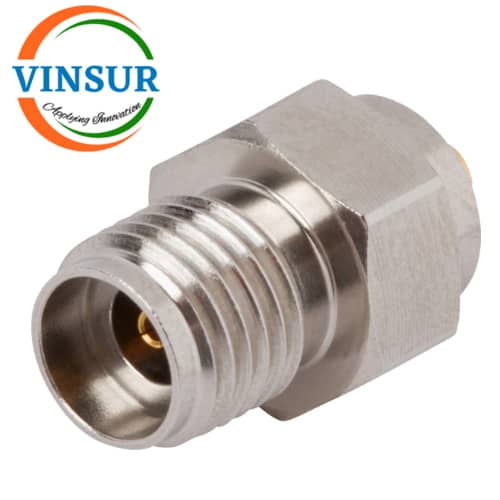

11U2103Q– RF CONNECTOR – 50OHMS , 2.92MM FEMALE , STRAIGHT, SOLDER TYPE , RG .047 CABLE
- RF CONNECTOR: 50Ω
- 2.92mm FEMALE
- STRAIGHT
- CLAMP TYPE
- RG 0.047 CABLE
Click Here to download the datasheet
Description
The 2.92mm connector was developed for use to 40 GHz. The male pin is shorter than that of an SMA or 3.5mm to ensure that the outer contacts of the male and female connectors engage before the pin and female receptacle do. This ensures that the pin and socket will not see excessive wear and mating stress seen by misalignment in an SMA or 3.5mm
| CONNECTOR SPECIFICATION | |
| Connector name | 2.92mm |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Solder |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Coupling | Threaded |
| Insulator Material | PTFE |
| Cable Type | 0.047 Flexible Coax |
| Number of Ports | Single |
| VSWR | 1.25:1 |
| Max Frequency | DC to 40GHz |
| Temperature Rating | -65°C to +165°C |
