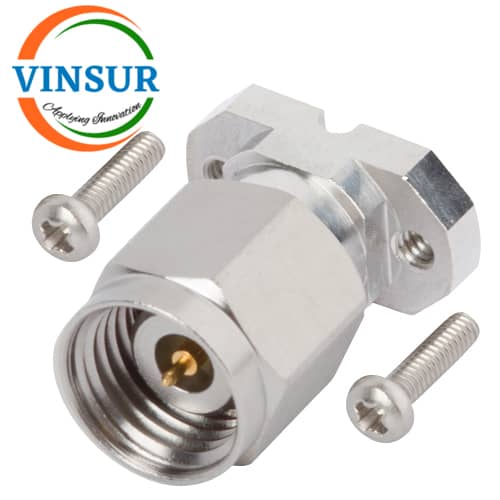

VSW-11T11340 — RF CONNECTOR – 50OHMS , 2.4MM MALE , STRAIGHT, 2-HOLE FLANGE SCREW TYPE CONNECTOR
- RF CONNECTOR: 50Ω
- 2.4mm MALE
- STRAIGHT
- PCB Vertical Launch
Click Here to download the datasheet
Description
2.4 mm connector is a 50 ohm screw-on precision connector designed for operation up to 50 GHz. The 2.4 mm connectors are standardized according to IEC 61169-40 and are used in a wide range of applications including satellites, test & measurement, and radars.
| CONNECTOR SPECIFICATION | |
| Connector name | 2.4mm |
| Gender | Plug(Male) |
| Orientation | Straight |
| Mounting Type | PCB Vertical Launch |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Coupling | Threaded |
| Insulator Material | PTFE |
| Body Style | 2 Hole |
| VSWR | ≤1.2 |
| Number of Ports | Single |
| Max Frequency | DC to 50GHz |
| Temperature Rating | -65°C to +165°C |
