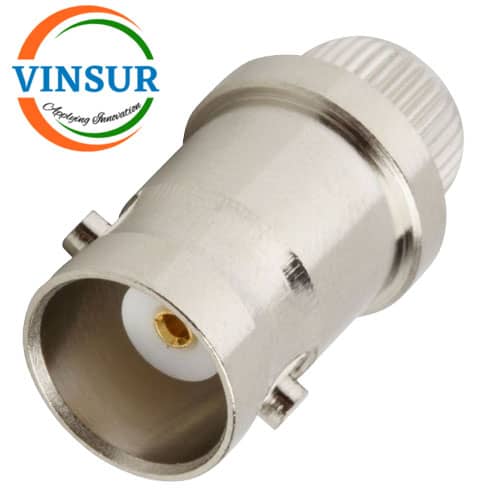

11321770 — RF CONNECTOR – 50OHMS ,BNC FEMALE , STRAIGHT , PRESS FIT,PCB-ROUNT POST
- RF CONNECTOR: 50Ω
- BNC FEMALE
- STRAIGHT
- PRESS FIT
- ROUNT POST
- PCB MOUNT
Click Here to download the datasheet
Description
The BNC is a bayonet-style connector allowing for quick connected and disconnect with a positive locking mechanism. Mating is achieved with just a quarter-turn of the coupling nut. With a classic, dependable design, BNC are suited to standard cables, in a variety of termination styles.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack(Female) |
| Orientation | Straight |
| Termination Style | Round Post |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 4Ghz |
| VSWR | ≤1.25 |
| Mounting Type | Panel Mount |
| Mounting Feature | Press-Fit |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
