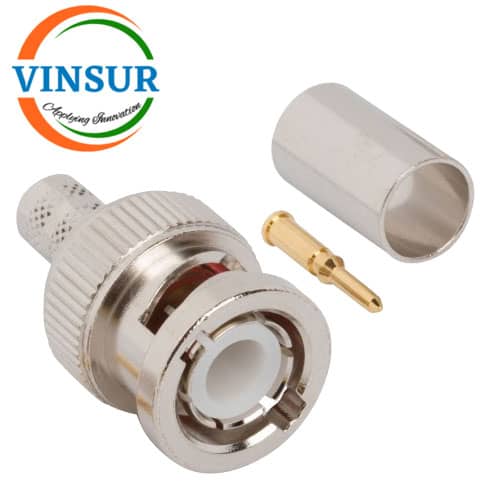

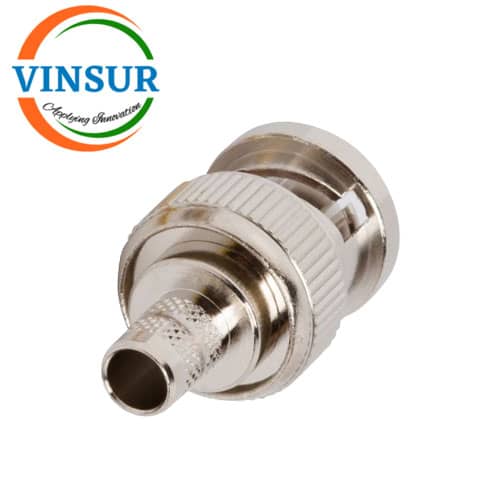

11311016 — RF CONNECTOR – 50OHMS , BNC MALE , STRAIGHT , CRIMP TYPE , LMR-240 CABLE
- RF CONNECTOR: 50Ω
- BNC MALE
- STRAIGHT
- CRIMP TYPE
- LMR-240 CABLE
Click Here to download the datasheet
Description
The BNC is a bayonet-style connector allowing for quick connected and disconnect with a positive locking mechanism. Mating is achieved with just a quarter-turn of the coupling nut. With a classic, dependable design, BNC are suited to standard cables, in a variety of termination styles.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| VSWR | ≤ 1.3 |
| Max Frequency (GHz) | DC to 4Ghz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
