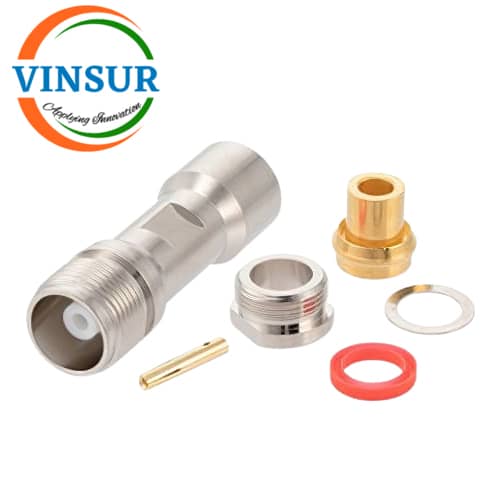

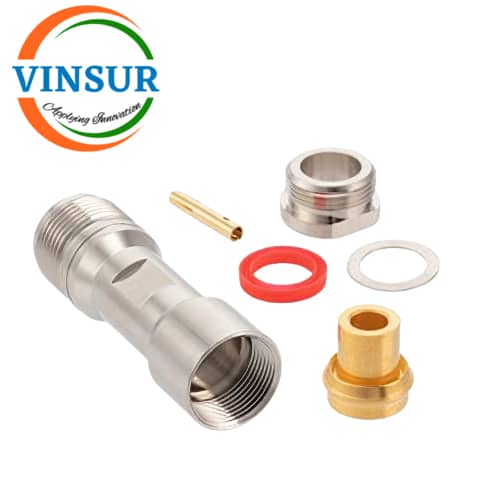

VSW-11E2192E — RF CONNECTOR-50 OHMS,HN-TYPE FEMALE STRAIGHT CLAMP TYPE FOR RG401(0.250) CABLE
- RF CONNECTOR: 50Ω
- HN-TYPE MALE
- STRAIGHT
- CLAMP TYPE
- RG401(0.250)
Click Here to download the datasheet
Description
HN-Type connectors are medium sized, weather-proof units designed for high voltage applications. These connectors feature captivated contact design which prevents contact recession under extreme temperatures and mechanical stresses.HN connectors are capable of handling up to 5,000 volts, making them ideal for use in high power industrial applications from DC to 4 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG401(0.250) |
| Mounting Features | – |
| Max Frequency (GHz) | DC – 3 MHz |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
