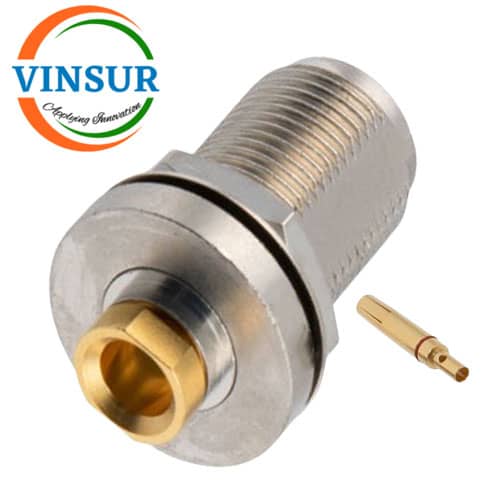

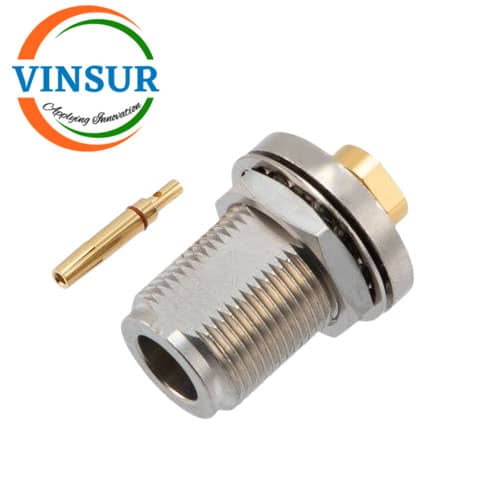

1112123E — RF CONNECTOR – 50OHMS , N FEMALE , STRAIGHT , BULKHEAD REAR MOUNT , SOLDER TYPE , RG401 (0.250 INCH) CABLE
- RF CONNECTOR: 50Ω
- N-TYPE FEEMALE
- STRAIGHT
- BULKHEAD REARMOUNT
- SOLDER TYPE
- RG-401(0.250) CABLE
Click Here to download the datasheet
Description
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack(Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG401(0.250) |
| Mounting features | Bulkhead |
| VSWR | ≤1.3 Max |
| Max Frequency (GHz) | 11 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
