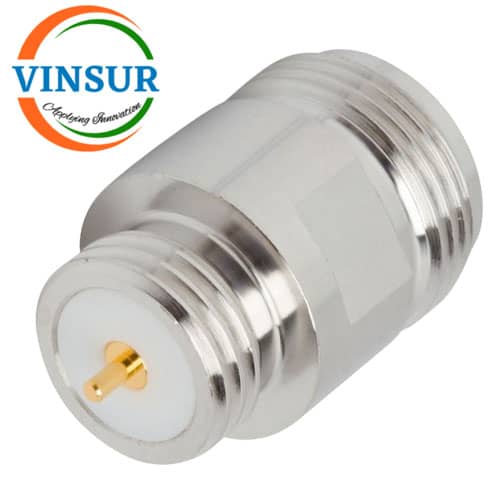

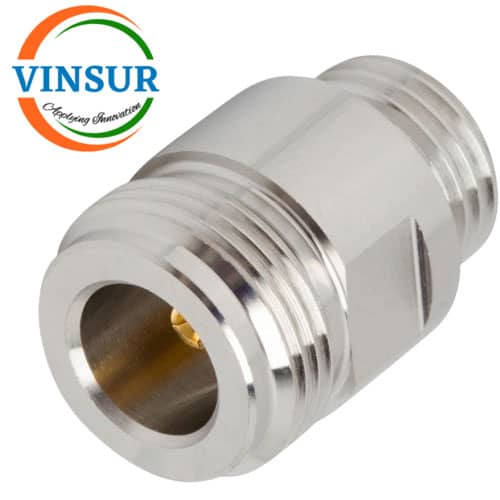

11121670 — RF CONNECTOR — 50 OHMS , N FEMALE , STRAIGHT , SCREW FIT , ROUND POST
- RF CONNECTOR: 50Ω
- N-TYPE FEMALE
- STRAIGHT
- SCREW FIT
- 2.8mm EXTENDED TEFLON
- ROUND POST
- PCB MOUNT
Click Here to download the datasheet
Description
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Round Post |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Crimp |
| Mounting Features | – |
| Insulator Material | PTFE |
| Panel Mounting Feature | – |
| Ports | 1 (Single Port) |
| Max Frequency (GHz) | 11 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -40 |
| Max. Temp. (Celsius) | 85 |
