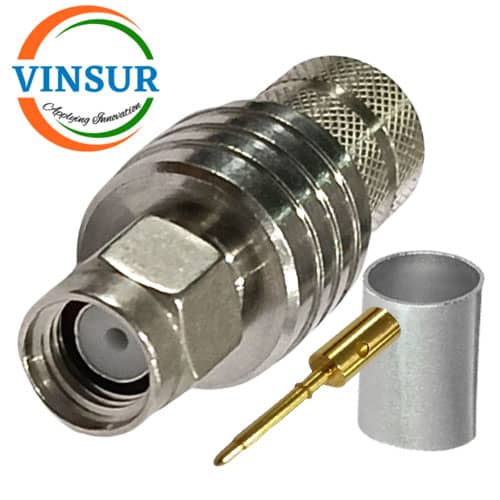

11511017-44 — RF CONNECTOR – 50OHMS , SMA MALE , STRAIGHT , CRIMP TYPE , LMR-400 CABLE
- RF CONNECTOR: 50Ω
- SMA MALE
- STRAIGHT
- CRIMP TYPE
- LMR-400 CABLE
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR400 |
| Mounting Features | – |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.3 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
