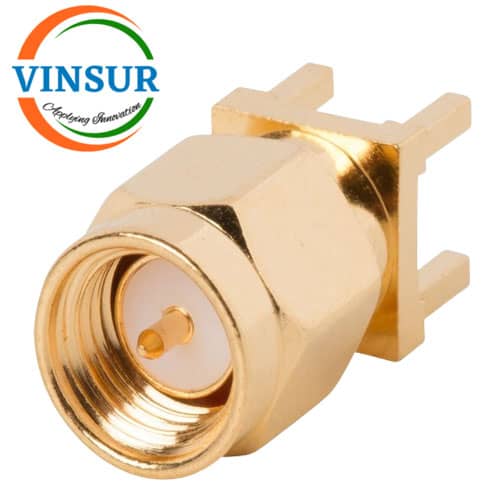

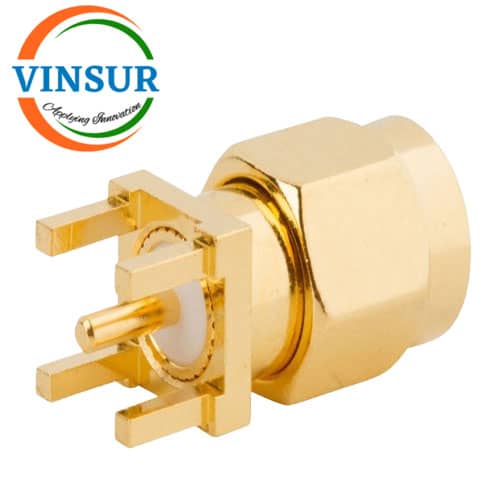

11511040 — RF CONNECTOR – 50 OHMS , SMA MALE , STRAIGHT , PCB-THROUGH HOLE
- RF CONNECTOR: 50Ω
- SMA MALE
- STRAIGHT
- THROUGH HOLE
- PCB MOUNT
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | PCB – Through Hole |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder – Round Post |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | ≤1.15 |
| Ports | 1 (Single Port) |
| Max Frequency (GHz) | 12 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
