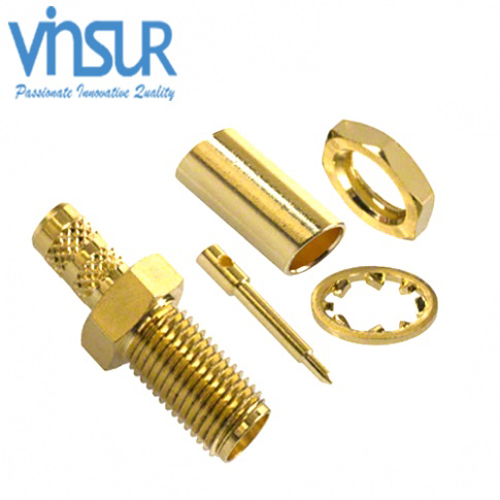

11921215 — RF CONNECTOR – 50 OHMS , RP SMA FEMALE , STRAIGHT , BULKHEAD REAR MOUNT , CRIMP TYPE , RG58, RG142, LMR195 CABLE
- RF CONNECTOR: 50Ω
- SMA RP FEMALE
- STRAIGHT
- BULKHEAD REARMOUNT
- CRIMP TYPE
- RG-58 CABLE
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG58/RG142 |
| Mounting Features | Bulk Head |
| Max Frequency (GHz) | DC to 12.4GHz |
| VSWR | ≤1.2 |
| Polarity | Reverse Polarity |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
