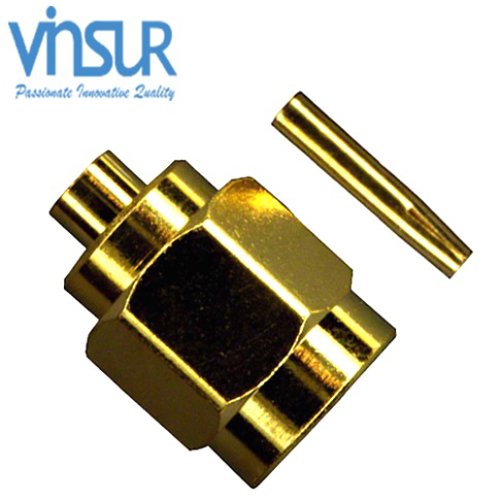

SMA RP ML Str Cr RG 0.086 50 Ω
- RF CONNECTOR: 50Ω
- SMA RP MALE
- STRAIGHT
- CRIMP TYPE
- RG-405(0.86) CABLE
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| Type | RF Connector |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG405 |
| Coupling Mechanism | Threaded |
| Mounting Feature | |
| Max Frequency (GHz) | 18 |
| Polarity | Reverse |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
