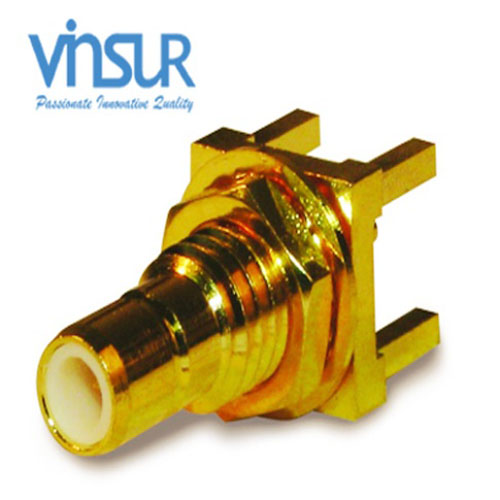

11621240 — RF CONNECTOR – 50 OHMS , SMB FEMALE , STRAIGHT , BULK HEAD REAR MOUNT , PCB-THROUGH HOLE
- RF CONNECTOR: 50Ω
- SMB FEMALE
- STRAIGT
- BULKHEAD REARMOUNT
- THROUGH HOLE
- PCB MOUNT
Click Here to download the datasheet
Description
The SMB interface features a snap-on coupling mechanism and is available in 50Â and 75 ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB – Through Hole |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Mounting Features | Bulk Head |
| Insulator Material | PTFE |
| VSWR | ≤1.25 |
| Max Frequency (GHz) | DC to 6GHz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
