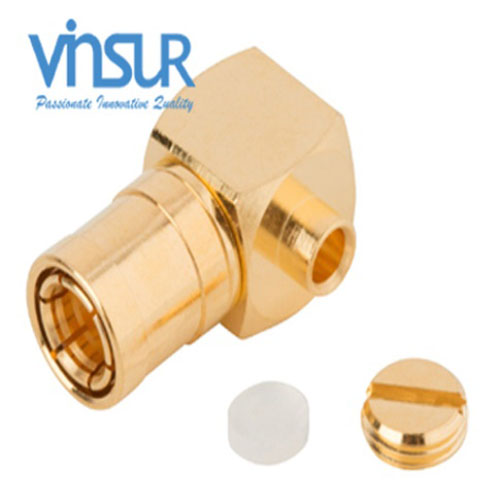

1161203C — RF CONNECTOR – 50 OHMS , SMB MALE , RIGHT ANGLE , SOLDER TYPE , RG405 (0.086 INCH) CABLE
- RF CONNECTOR: 50Ω
- SMB MALE
- RIGHT ANGLE
- SOLDER TYPE
- RG-405(0.086) CABLE
Click Here to download the datasheet
Description
The SMB interface features a snap-on coupling mechanism and is available in 50 and 75 ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 4 GHz and extended performance up to 10 GHz.
| Type | RF Connector |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG405 |
| Coupling Mechanism | Threaded |
| Mounting Feature | |
| Max Frequency (GHz) | 4 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
