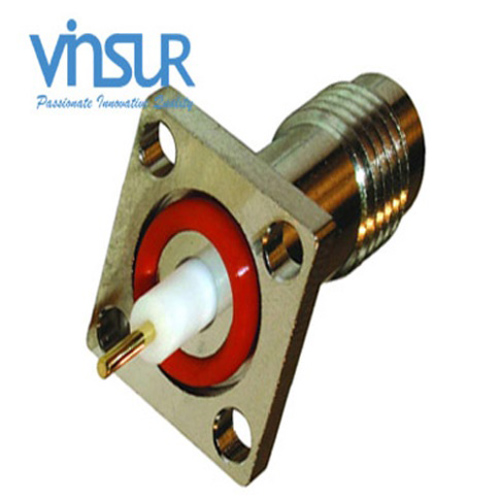

11221490 — RF CONNECTOR – 50 OHMS , TNC FEMALE , STRAIGHT , 4HOLE FLANGE ,4MM EXTENDED TEFLON, PCB-ROUND POST
- RF CONNECTOR: 50Ω
- TNC FEMALE
- STRAIGHT
- 4mm EXTENDED TEFLON
- 4-HOLE FLANGE
- ROUND POST
- PCB MOUNT
Click Here to download the datasheet
Description
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BCN series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Type | TNC |
| Orientation | Straight |
| Contact Termination | Solder |
| Termination Style | PCB – Round post |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Body Style | Flange |
| Polarity | Standard |
| Insulator Material | PTFE |
| VSWR | ≤1.2 |
| Max Frequency (GHz) | 11 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
| Extended Dielectric Length | 4MM |
| Mounting Feature | 4-hole Flange |
