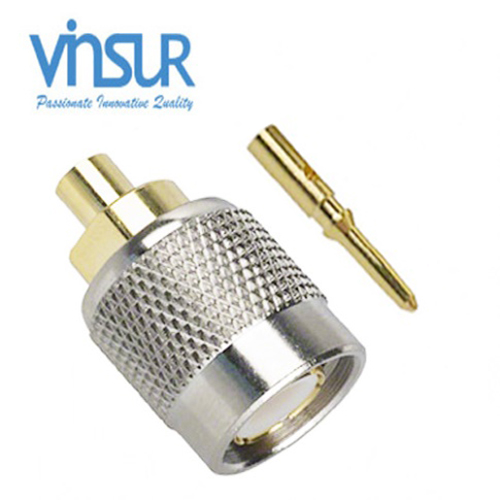

1122101D — RF CONNECTOR – 50 OHMS , TNC FEMALE , STRAIGHT , SOLDER TYPE , RG402 (0.141 INCH) CABLE
- RF CONNECTOR: 50Ω
- TNC FEMALE
- STRAIGHT
- SOLDER TYPE
- RG-402(0.141) CABLE
Click Here to download the datasheet
Description
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BCN series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| Mounting Features | – |
| Max Frequency (GHz) | DC to 11GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -40° |
| Max. Temp. (Celsius) | +85° |
