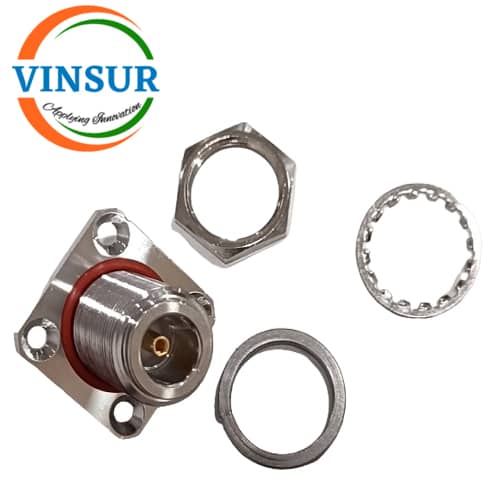

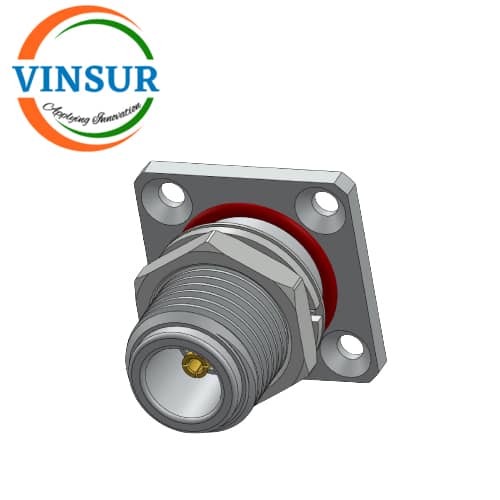

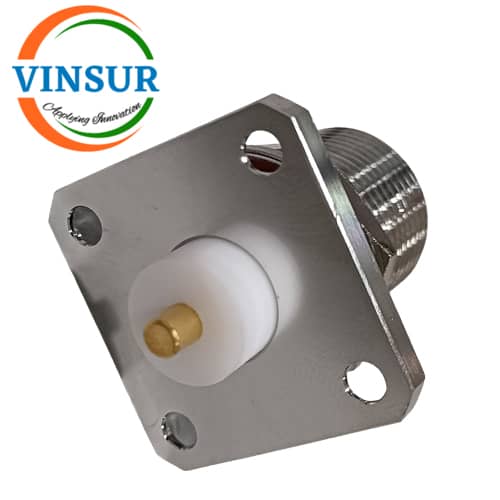

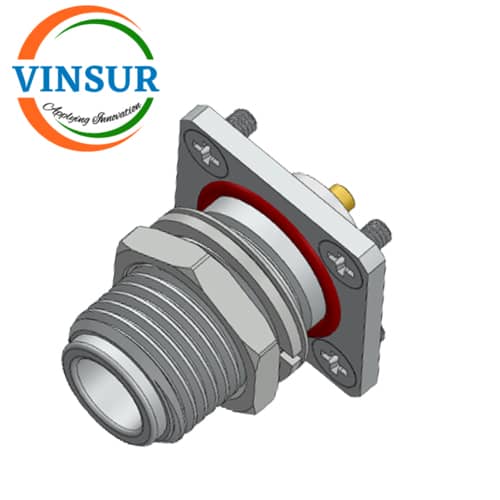

VSW-111114A — RF CONNECTOR – 50OHMS ,N FEMALE,STRAIGHT ,4-HOLE FLANGE MOUNT 5MM EXTENDED TEFLON PCB MOUNT
- RF CONNECTOR: 50Ω
- N-TYPE FEMALE
- STRAIGHT
- 4-HOLE FLANGE
- 5mm EXTENDED TEFLON
- PCB MOUNT
Click Here to download the datasheet
Description
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Centre Conductor | Phosphor Bronze, Silver Plating |
| Outer Conductor | Brass, Ternary alloy Plating |
| O-ring | Silicon Rubber |
| Max Frequency (GHz) | DC-6GHz |
| VSWR | 1.20 Max |
| Insertion Loss | 0.1dB@6GHz |
| Insulator Material | PTFE |
| Dielectric withstand Voltage | 2000V |
| Centre Conductor | ≤1mΩ |
| Outer Conductor | ≤1mΩ |
| Insulation Resistance | ≥5000mΩ |
| Durability | ≥500mΩ |
| Mounting Features | Bulkhead |
