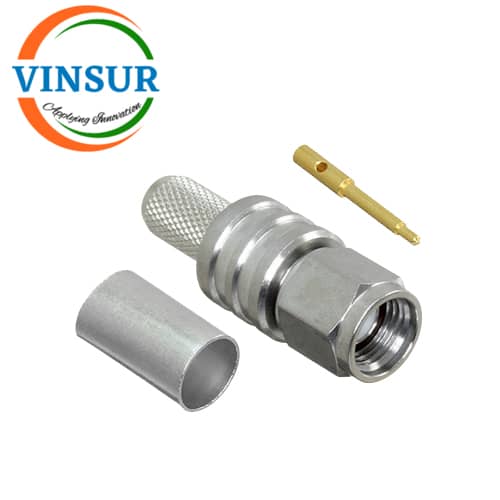

VSW-11511916 — RF CONNECTOR – 50OHMS , SMA MALE , STRAIGHT , CRIMP TYPE , LMR240 CABLE
- RF CONNECTOR: 50Ω
- SMA MALE
- STRAIGHT
- CRIMP TYPE
- LMR-240 CABLE
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Sliver |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| Max Frequency (GHz) | DC to 10 GHz |
| VSWR | ≤1.13 |
| Polarity | Standard |
| Thread Direction | Standard |
| Operating Temperature | -40°C ~ 85°C |
