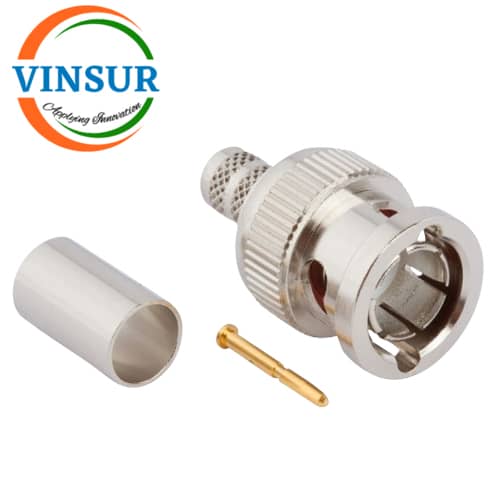

VSW-1231101H — RF CONNECTOR – 75 OHM BNC MALE STRAIGHT CRIMP TYPE RG59 CABLE
Description
The BNC is a bayonet-style connector allowing for quick connected and disconnect with a positive locking mechanism. Mating is achieved with just a quarter-turn of the coupling nut. With a classic, dependable design, BNC are suited to standard cables, in a variety of termination styles.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 75Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG59 |
| VSWR | ≤ 1.1 Max |
| Max Frequency (GHz) | DC to 4Ghz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
