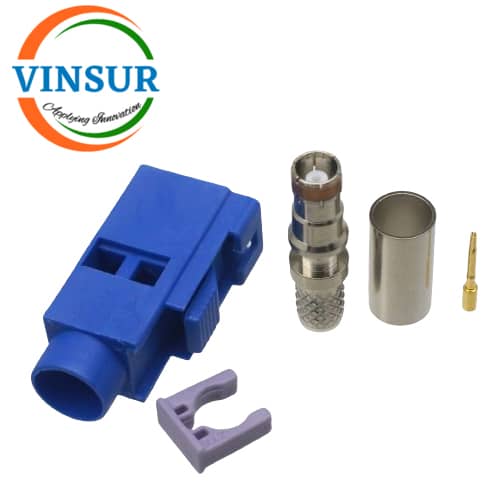

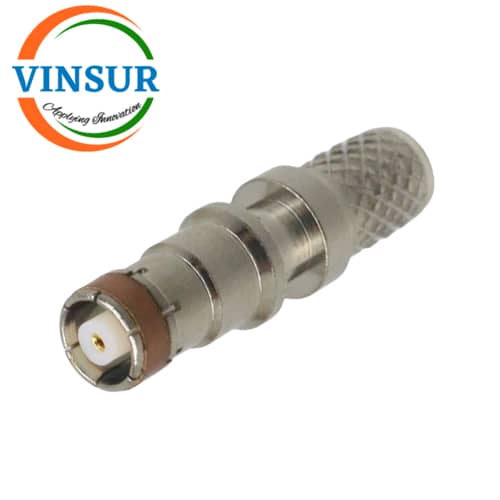

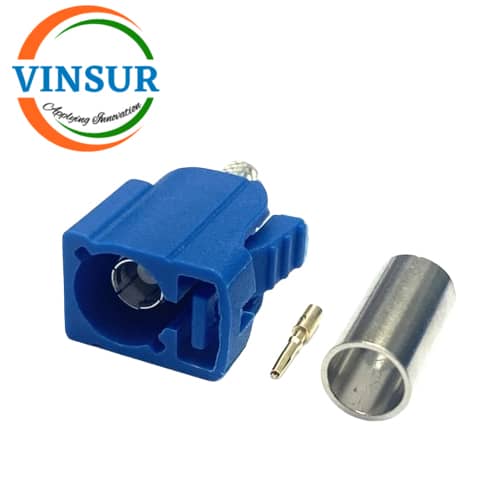

VSW-FAKRA-FS-58C — RF CONNECTOR – 50 OHMS FAKRA SMB FEMALE STRAIGHT CRIMP TYPE FOR RG 58 CABLE(Blue)
- RF CONNECTOR: 50Ω
- FAKRA FEMALE
- STRAIGHT
- CRIMP TYPE
- RG-58 CABLE
Click Here to download the datasheet
SKU:
VSW-FAKRA-FS-58C
Category: FOR RG 58 CABLE
Tags: Fakra Connectors, For RG58 cable, RF connectors
Description
FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.
CONNECTOR SPECIFICATIONS | |
Gender | Jack (Female) |
Orientation | Straight |
Termination Style | Cable – Crimp |
Impedance (Ohms) | 50Ω |
Body Finish | Nickel |
Body Material | Zinc Die cast |
Contact Finish | Gold |
Contact Material | Brass |
Contact Termination | Crimp |
Insulator Material | PTFE |
Cable Type | RG58 |
Max Frequency (GHz) | DC to 4GHz |
VSWR | 1.6 (-13dB) Max |
Insertion Loss | 0.45 dB |
Polarity | Standard |
Min. Temp. (Celsius) | -65°C |
Max. Temp. (Celsius) | +165°C |
FAKRA Key code | C – Blue |
