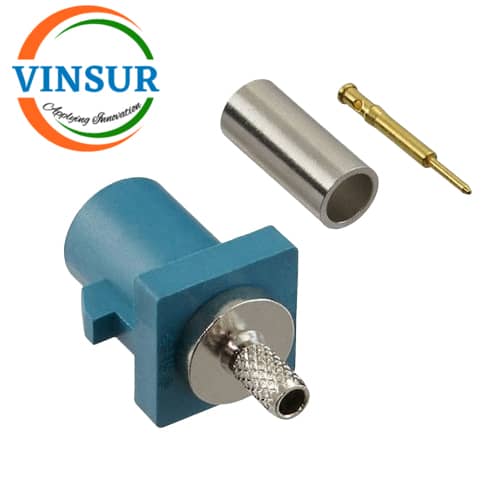

VSW-FAKRA-MS-316Z -- RF CONNECTOR - 50 OHMS FAKRA SMB MALE STRAIGHT CRIMP TYPE FOR RG 316 CABLE(Water Blue)

Click to enlarge

VSW-FAKRA-MS-316Z — RF CONNECTOR – 50 OHMS FAKRA SMB MALE STRAIGHT CRIMP TYPE FOR RG 316 CABLE(Water Blue)

RF CONNECTOR: 50Ω
FAKRA MALE
STRAIGHT
CRIMP TYPE
RG-316 CABLE

Click Here to download the datasheet

SKU: VSW-FAKRA-MS-316Z Category: For RG 316 Cable Tags: Fakra Connectors, For RG 316 Cable, RF connectors

Description
Reviews (0)

Description

FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

CONNECTOR SPECIFICATIONS
Gender	Plug (Male)
Orientation	Straight
Termination Style	Cable – Crimp
Impedance (Ohms)	50Ω
Body Finish	Nickel
Body Material	Zinc Die cast
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Insulator Material	PTFE
Cable Type	RG316
Max Frequency (GHz)	DC to 3GHz
VSWR	1.6 (-13dB) Max
Insertion Loss	0.45 dB
Polarity	Standard
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
FAKRA Key code	K – Curry
