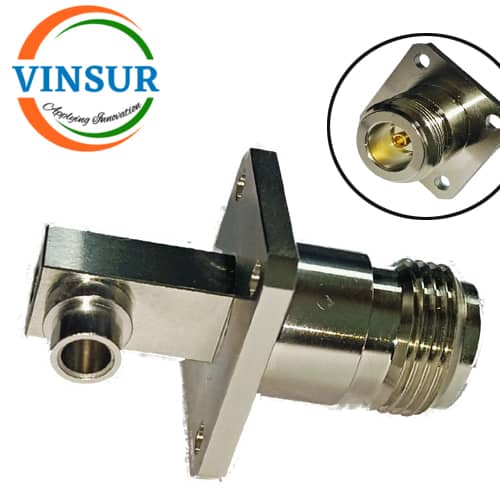

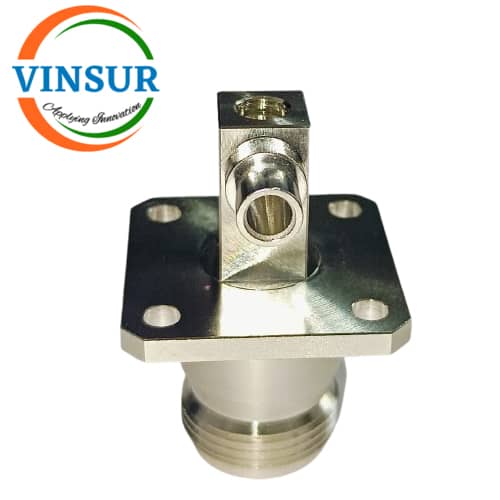

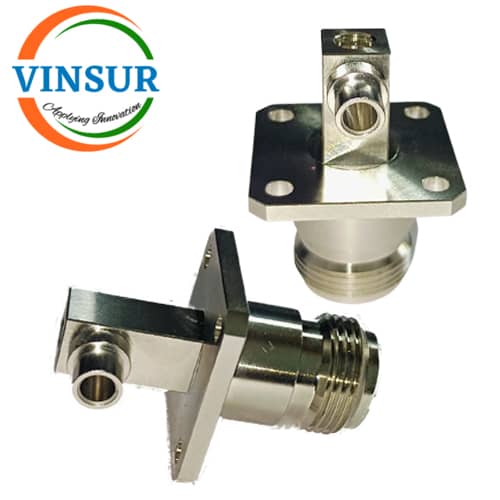

VSW250012-CN — RF CONNECTOR – 50OHMS , N FEMALE , RIGHT ANGLE ,4-HOLE FLANGE MOUNT , SOLDER TYPE , RG402 CABLE
- RF CONNECTOR: 50Ω
- N-TYPE FEMALE
- RIGHT ANGLE
- 4-HOLE FLANGE
- SOLDER TYPE
- RG-402(0.141) CABLE
Click Here to download the datasheet
Click Here to download the drawing
Description
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| VSWR | ≤1.30 Max |
| Mounting Features | 4-hole flange |
| Max Frequency (GHz) | DC to 6 GHz |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
