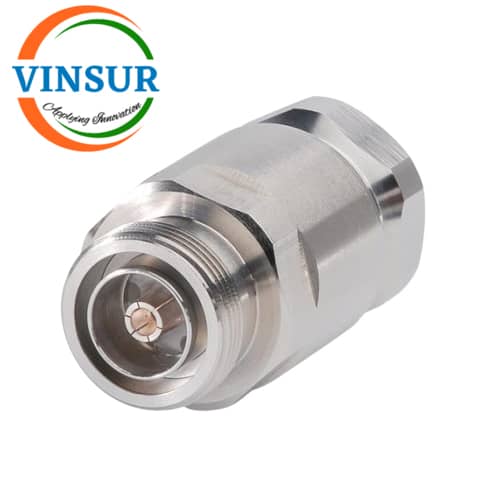

111D2102A -- RF CONNECTOR - 50OHMS , 7-16 FEMALE , STRAIGHT , CLAMP TYPE , 7-8 INCH CABLE - Image 1

Click to enlarge

111D2102A — RF CONNECTOR – 50OHMS , 7-16 FEMALE , STRAIGHT , CLAMP TYPE , 7-8 INCH CABLE

RF Connector: 50Ω
7-16 Din
Jack (Female)
Straight
7/8 inch Cable

Click Here to download the datasheet

SKU: 111D2102A Category: 7-16 for 7-8 inch cable Tags: 7-16 Connectors, 7/16 Din Male, RF connectors

Description
Reviews (0)

Description

CONNECTOR SPECIFICATIONS
Gender	Jack (Female)
Type	Din
Orientation	Straight
Contact Termination	Solder
Termination Style	Cable – Clamp
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Silver
Contact Material	Brass
Contact Termination	Solder
Insulator Material	PTFE
Cable Type	7/8 inch Cable
Max Frequency (GHz)	DC-3GHz
VSWR	1.13
Return Loss	24.60
Min. Temp. (Celsius)	-40
Max. Temp. (Celsius)	+85
