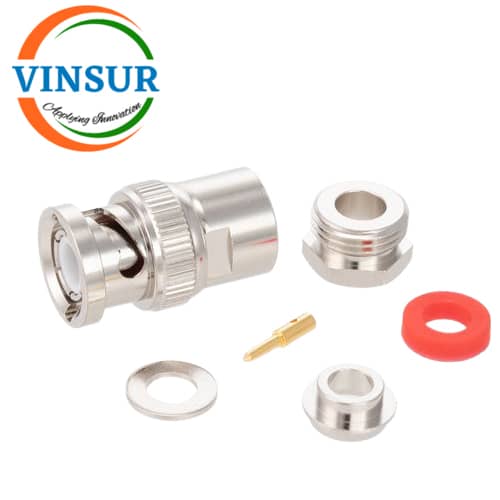

11311925-44 — RF CONNECTOR – 50OHMS , BNC MALE , STRAIGHT, CLAMP TYPE , MILGRADE CONNECTOR RG58, RG142, LMR195 CABLE
- RF CONNECTOR: 50Ω
- BNC MALE
- STRAIGHT
- CLAMP TYPE
- RG-58 CABLE
Click Here to download the datasheet
Description
The BNC is a bayonet-style connector allowing for quick connected and disconnect with a positive locking mechanism. Mating is achieved with just a quarter-turn of the coupling nut. With a classic, dependable design, BNC are suited to standard cables, in a variety of termination styles.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Silver |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Clamp |
| Insulator Material | PTFE |
| Cable Type | RG58 |
| Coupling Mechanism | Threaded |
| Max Frequency (GHz) | 3 |
| Polarity | Standard |
| Thread Direction | Standard |
