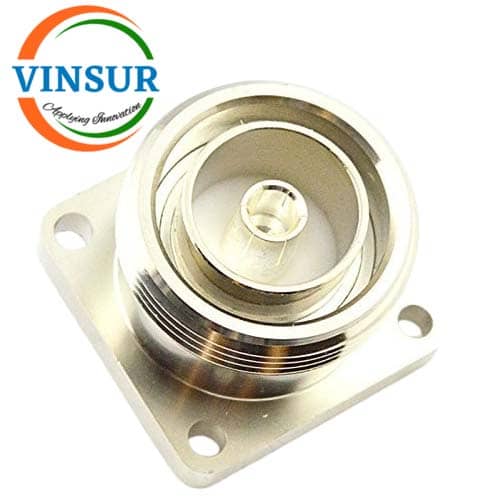

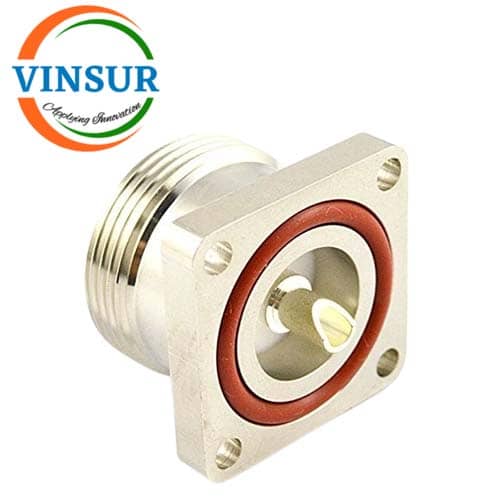

VSW-11D214F0 — RF CONNECTOR – 50 OHMS , 7.16 (DIN) FEMALE , STRAIGHT , 4 HOLE FLANGE , PCB MOUNT
- RF Connector: 50Ω
- 7-16 Din
- Plug (Female)
- Straight
- 4 hole flange
- PCB mount
Click Here to download the datasheet
Click Here to download the Drawing
Description
The 7-16 series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and Intermodulation distortion (IMD).
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Type | 7/16(Din) |
| Orientation | Straight |
| Contact Termination | Solder |
| Termination Style | Solder Cup |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Panel Mounting Feature | 4-Hole Flange |
| Max Frequency (GHz) | DC-6GHz |
| VSWR | ≤1.25 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
