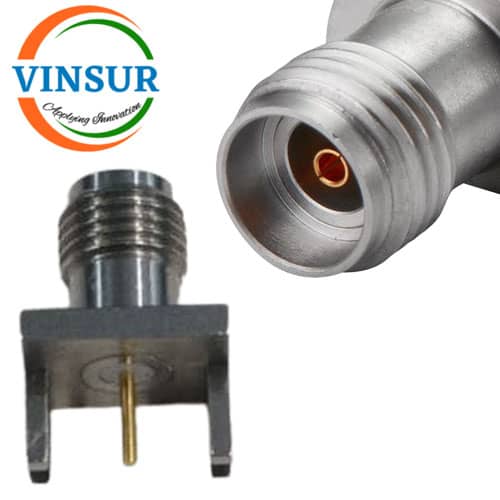

11U21050 — RF CONNECTOR — 50OHMS , 2.92MM FEMALE , STRAIGHT , PCB-EDGE MNT
- RF CONNECTOR: 50Ω
- 2.92mm FEMALE
- STRAIGHT
- PCB EDGE LAUNCH
Click Here to download the datasheet
Description
The 2.92mm connector was developed for use to 40 GHz. The male pin is shorter than that of an SMA or 3.5mm to ensure that the outer contacts of the male and female connectors engage before the pin and female receptacle do. This ensures that the pin and socket will not see excessive wear and mating stress seen by misalignment in an SMA or 3.5mm
| CONNECTOR SPECIFICATION | |
| Connector name | 2.92mm |
| Gender | Jack(Female) |
| Orientation | Straight |
| Mounting Type | PCB-Edge , End Launch |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Mating Cycles | 500 |
| Insulator Material | PTFE |
| Body Style | 2 Hole |
| Insertion Loss | 0.35dB |
| VSWR | ≤1.25 |
| Max Frequency | DC to 40GHz |
| Temperature Rating | -55°C to +50°C |
