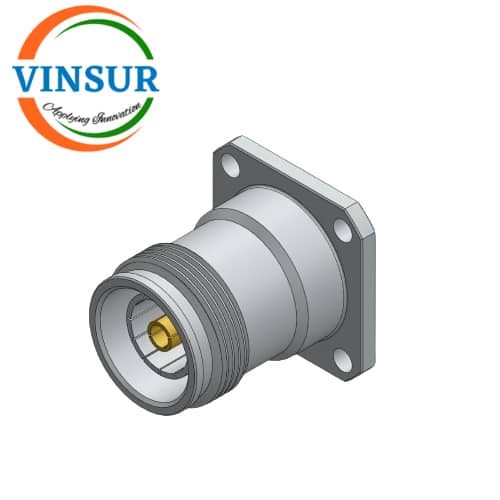

VSW-4.3-10-FS-4H-CN -- RF CONNECTORES - 50 OHMS , 4.3-10 FEMALE , STRAIGHT , 4-HOLE FLANGE MOUNT CONNECTOR - Image 1

VSW-4.3-10-FS-4H-CN -- RF CONNECTORES - 50 OHMS , 4.3-10 FEMALE , STRAIGHT , 4-HOLE FLANGE MOUNT CONNECTOR - Image 2

Click to enlarge

VSW-4.3-10-FS-4H-CN -- RF CONNECTORES - 50 OHMS , 4.3-10 FEMALE , STRAIGHT , 4-HOLE FLANGE MOUNT CONNECTOR

VSW-4.3-10-FS-4H-CN -- RF CONNECTORES - 50 OHMS , 4.3-10 FEMALE , STRAIGHT , 4-HOLE FLANGE MOUNT CONNECTOR - Image 2

VSW-4.3-10-FS-4H-CN — RF CONNECTORES – 50 OHMS , 4.3-10 FEMALE , STRAIGHT , 4-HOLE FLANGE MOUNT CONNECTOR

RF CONNECTOR: 50Ω
4.3-10 FEMALE
STRAIGHTT
4-HOLE FLANGE
PCB SOLDER CUP

Click Here to download the datasheet

Click Here to download the drawing

SKU: VSW-4.3-10-FS-4H-CN Categories: 4.3-10 Connectors, FOR PCB MOUNT Tags: 4.3-10 CONNECTORS, For PCB Mount, RF connectors

Description
Reviews (0)

Description

CONNECTOR SPECIFICATIONS
Gender	Jack (Female)
Type	4.3-10
Orientation	Straight
Termination Style	PCB Mount
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Solder
Mounting Features	4-Hole Flange
Insulator Material	PTFE
VSWR	≤1.25
Max Frequency (GHz)	6
Min. Temp. (Celsius)	-65
Max. Temp. (Celsius)	165
