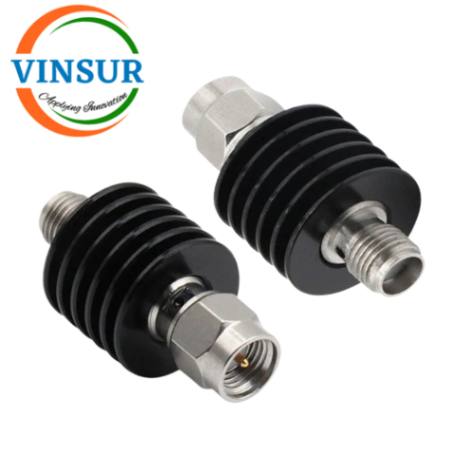

51412423-40–RF Fixed Attenuator (2W 1dB DC-4GHz SMA Male to Female)
P/N :-51412423-40
- RF Attenuator
- RF Fixed Attenuator
- DC to 4GHz
- Attenuation(1db)
- SMA Male to Female
Click Here to get Data Sheet
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Gender1 | Male |
| Adapter Side 1 Series | SMA |
| Gender2 | Female |
| Adapter Side 2 Series | SMA |
| Impedance (Ohms) | 50 |
| Attenuation | 1dB |
| Power (Max Watts) | 2 |
| VSWR | ≤1.2 |
| Body Material | Stainless Steel |
| Contact Material | Beryllium copper |
| Dielectric | PTFE |
| Mounting Feature | Cable & equipment |
| Max Frequency               | DC to 4GHz |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +120°C |
