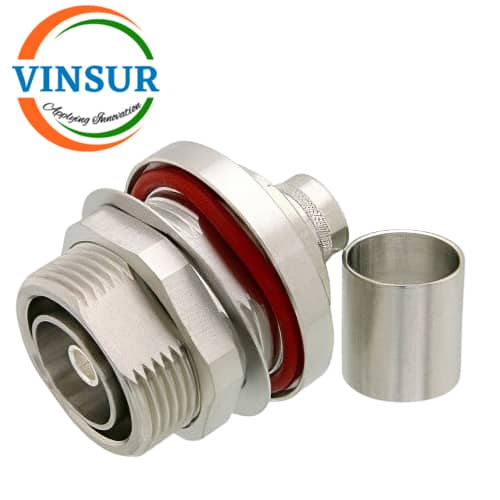

11D21218 — RF CONNECTOR-50OHMS , 7-16 FEMALE , STRAIGHT , BULKHEAD REAR MOUNT , CRIMP TYPE , LMR-600 CABLE
- RF Connector: 50Ω
- 7-16 Din
- Plug (Male)
- Straight
- LMR 600 Cable
Click Here to download the datasheet
Description
The 7-16 series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and Intermodulation distortion (IMD).
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Type | 7/16 |
| Orientation | Straight Bulkhead |
| Contact Termination | Solder |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR 600 Cable |
| Max Frequency (GHz) | DC-3GHz |
| VSWR | ≤1.25 |
| Min. Temp. (Celsius) | -40 |
| Max. Temp. (Celsius) | +80 |
