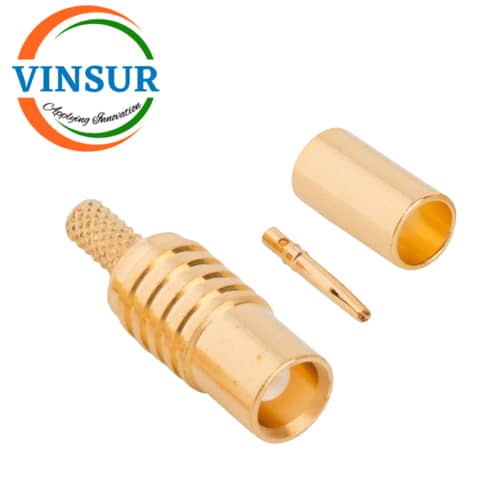

11721014 — RF CONNECTOR – 50 OHMS ,MCX FEMALE , STRAIGHT , CRIMP TYPE , RG316 RG174 RG188 LMR100
- RF CONNECTOR: 50Ω
- MCX FEMALE
- STRAIGHT
- CRIMP TYPE
- RG-316 CABLE
Click Here to download the datasheet
Click Here to download the drawing
Description
The MCX (Micro Coaxial) series is available with 50 or 75 ohm options, and has broadband capability ranging from DC to 6 GHz. In addition, the MCX series features secure, fast and easy Snap-On/ snap-off coupling. MCX connectors were introduced in the 1980s and conform to the European CECC 22220 spec.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316 |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.3 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +125 |
