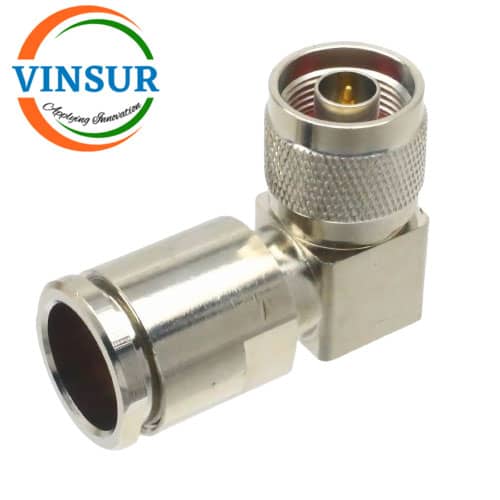

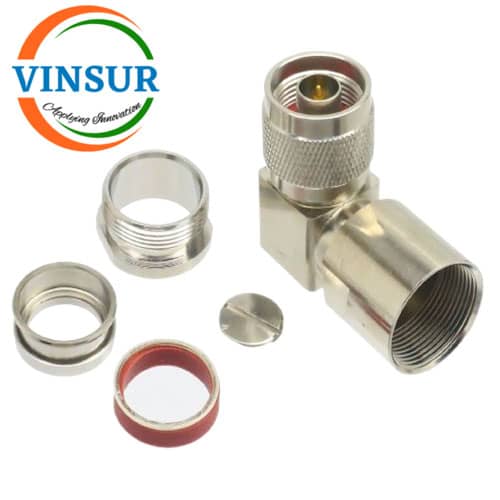

11112028 — RF CONNECTOR – 50OHMS , N MALE , RIGHT ANGLE , CLAMP TYPE , LMR-600 CABLE
- RF CONNECTOR: 50Ω
- N-TYPE MALE
- RIGHT ANGLE
- CLAMP TYPE
- LMR-600 CABLE
Click Here to download the datasheet
Description
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR600 |
| Coupling Mechanism | Threaded |
| Max Frequency (GHz) | 11 |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
