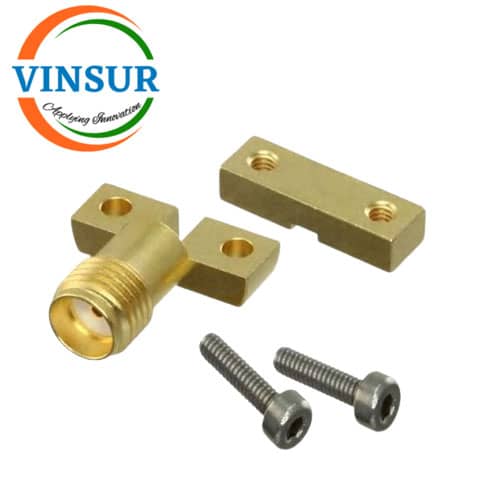

115213EI — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT, EDGE LAUNCH CONNECTOR
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- 2-HOLE FLANGE
- END LUANCH
- PCB MOUNT
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Connector Mount Method | 2 Hole Flange |
| Center Contact | Beryllium-copper, Gold Plated |
| Body | Brass, Gold Plated |
| Contact Termination Style | Solder |
| Interface Type | End Launch |
| Insulator Material | PTFE |
| VSWR | ≤ 1.35:1 (DC to 18Ghz) |
| Insertion Loss | 0. 05 x Sqt.ft |
| Max Frequency (GHz) | DC to 18Ghz |
| Voltage Rating | 150Vrms |
| Dielectric Whistling Voltage | 500V |
| Insulation Resistance | ≥500M ohm |
| Mating Torque | 5-7 in – Ibs |
| Mating Cycles | 500 Cycles |
| Temperature Rating | -40°C ~ +125 °C |
