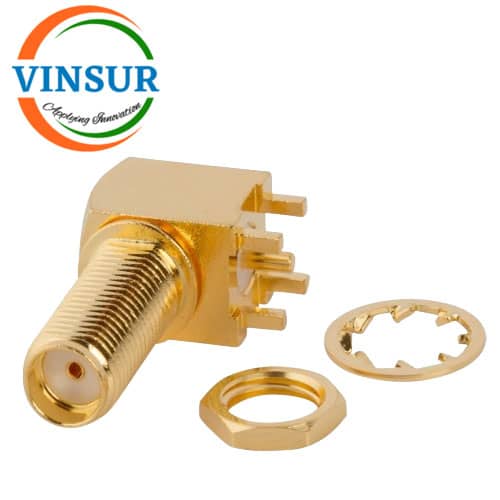

11522240 — RF CONNECTOR – 50 OHMS , SMA FEMALE , RIGHT ANGLE , BULK HEAD REAR MOUNT , PCB-THROUGH HOLE , SHORT LEGS
- RF CONNECTOR: 50Ω
- SMA FEMALE
- RIGHT ANGLE
- BULKHEAD REAR MOUNT
- THROUGH HOLE
- PCB MOUNT
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Right Angle |
| Termination Style | PCB – Through Hole |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Mounting Features | Bulkhead – Rear Mount |
| Insulator Material | PTFE |
| VSWR | ≤1.25 |
| Max Frequency (GHz) | 12 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
