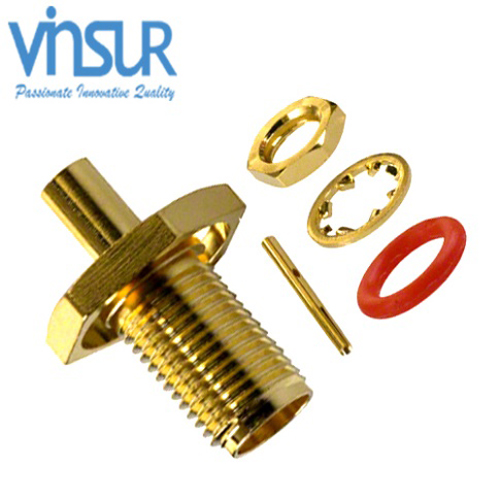

1152123C — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , BULK HEAD REAR MOUNT , SOLDER TYPE , RG405 (0.086 INCH) CABLE
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- BULKHEAD REARMOUNT
- CRIMP TYPE
- RG-405(0.86) CABLE
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Brass, Gold plating |
| Body Material | Gold plating |
| Coupling Nut | Brass, Gold plating |
| VSWR | ≤1.3 |
| Insulator Material | PTFE |
| Cable Type | RG405(0.86) |
| Max Frequency (GHz) | DC to 6GHz |
| Polarity | Standard |
| Mounting Features | Bulkhead |
| Contact Termination | Solder |
| Temp (Max Degrees Celsius) | 165° |
| Temp (Min Degrees Celsius) | -65° |
