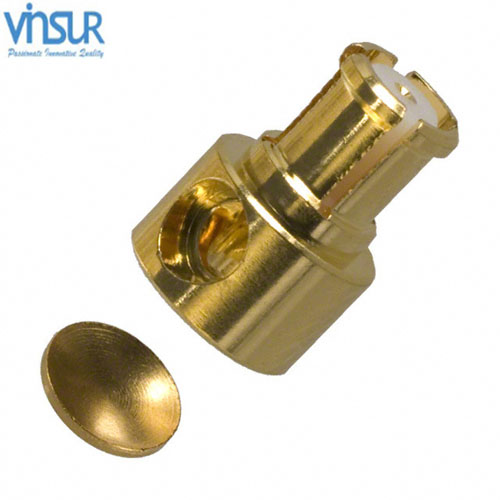

11L1103R — RF CONNECTOR – 50 OHMS , SMP FEMALE , RIGHT ANGLE , SOLDER TYPE ,RG405(0.85) CABLE
- RF CONNECTOR: 50Ω
- SMC RP MALE
- RIGHT ANGLE
- SOLDER TYPE
- RG-405 CABLE
Click Here to download the datasheet
Description
The SMP interface is a sub miniature interface in the same scale as MMCX connectors but offers a frequency range of DC to 40 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and Snap-On mating styles
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack(Female) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG405(0.085) |
| Max Frequency (GHz) | DC to 12GHz |
| VSWR(Max) | ≤1.4 |
| Voltage Rating | 335 VRMS |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +105°C |
