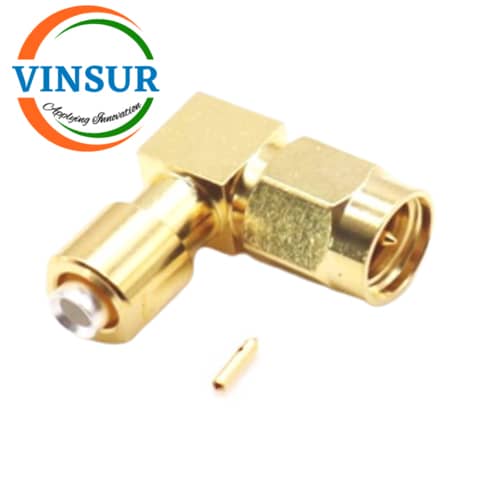

VSW-1151293D-55– RF CONNECTOR – 50OHMS , SMA MALE , RIGHT ANGLE , SOLDER TYPE , FOR RG402(.141) CABLE
- RF CONNECTOR: 50Ω
- RIGHT ANGLE
- SOLDER TYPE
- RG-402(0.141) CABLE
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Beryllium Bronze, Gold plating |
| Body Material | Brass, Gold plating |
| Bushing | Brass, Silver plating |
| VSWR | 1.35 max |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| Max Frequency (GHz) | DC to 18 GHz |
| Power Handling | Â Up to 100W |
| Polarity | Standard |
| Thread Direction | Standard |
| Insulation Resistance | ≥5000MΩ |
| Dielectric withstand voltage | 1000V |
