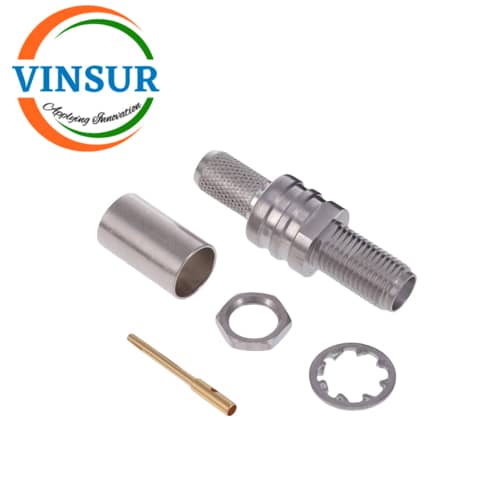

VSW-11521116 — RF CONNECTOR – 50OHMS , SMA FEMALE , STRAIGHT , BULK HEAD,CRIMP TYPE , LMR240 CABLE
- RF CONNECTOR: 50Ω
- SMA FEMALE
- STRAIGHT
- CRIMP TYPE
- LMR-240 CABLE
- BULKHEAD
Click Here to download the datasheet
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Sliver |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Feature | Bulkhead – Front Side Nut |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| Max Frequency (GHz) | 2.5 GHz |
| VSWR | ≤1.3 |
| Polarity | Standard |
| Thread Direction | Standard |
| Operating Temperature | -40°C ~ 85°C |
