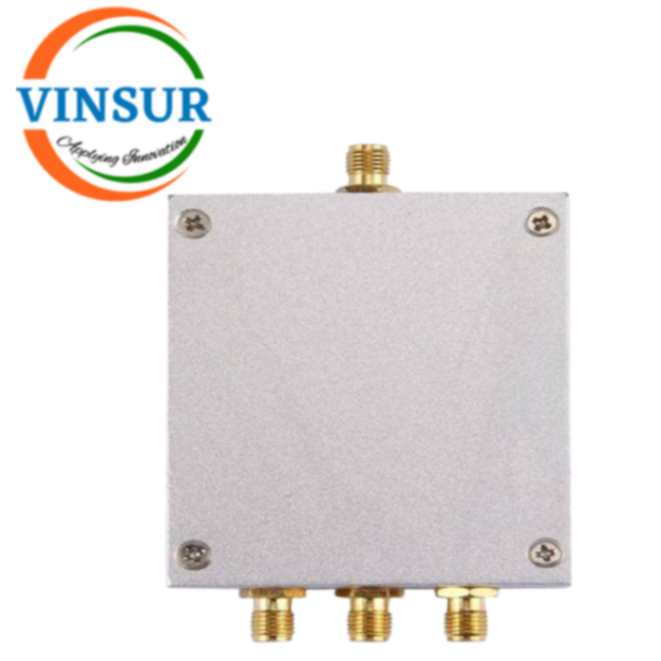

VSW-3WPS-120G-SF–RF Power Divider (3-Way 6000-18000MHz SMA Female IP60)
P/N :-VSW-3WPS-120G-SF
- RF Power DividerÂ
- 3-Way Powder Divider
- 6000-18000MHz
- 50Ω SMA  Female
Description
| SPECIFICATION | |
| Split Chanel | 3-way |
| Split Loss | 4.8 |
| Insertion Loss(dB) | ≤1.2 |
| Freq(MHz) | 6000-18000MHz |
| Isolation(dB) | ≥18 |
| VSWR | ≤1.50 |
| Amplitude Balance(dB) | ±0.6dB |
| Phase Balance | ±6° |
| Power Rating(W) | 20W as Splitter; 1W as Combiner |
| Impedance | 50 ohm |
| Connector | SMA Female |
| Colour | Black, GREY |
| Relative Humidity | 5-95% |
| Operating Temperature | -45~+85 |
