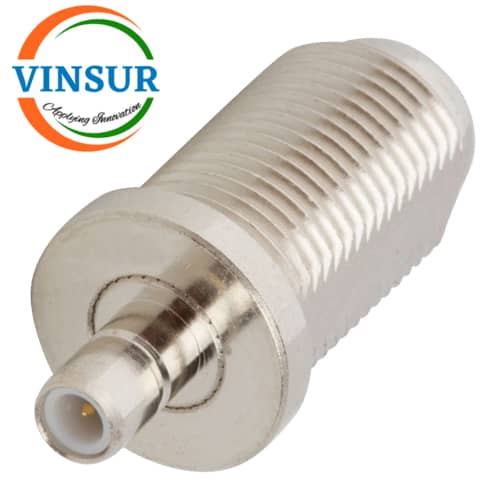

VSW-41B110B210-AD — RF ADAPTER — 75 OHMS F TYPE MALE STRAIGHT TO F TYPE FEMALE STRAIGHT ADAPTERS
- RF ADAPTER: 75Ω
- F-TYPE FEMALE
- STRAIGHT
- F-TYPE FEMALE
- STRAIGHT
Click Here to download the datasheet
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | F-Type |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 75 |
| Adapter Side 2 Series | F-Type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 75 |
| Body Plating | Nickel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 2GHz |
| VSWR | ≤1.25 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
