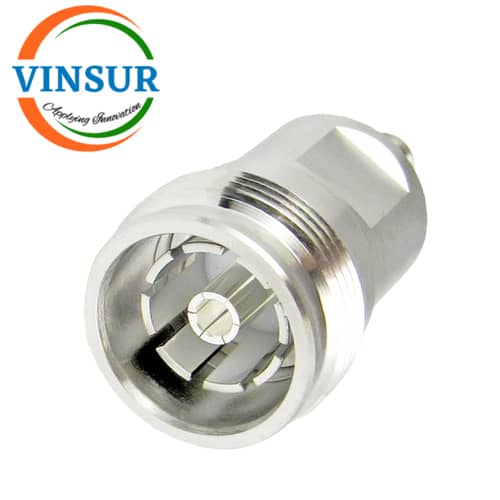

VSW-41G20421-ADP — RF ADAPTER – 50 OHMS 4.3-10 FEMALE STRAIGHT TO SMA FEMALE STRAIGHT ADAPTER
- RF ADAPTER: 50Ω
- SMA FEMALE
- STRAIGHT
- 4.3-10 MALE
Click Here to download the datasheet
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 4.3-10 |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR(Max) | ≤1.20 Max |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165 |
