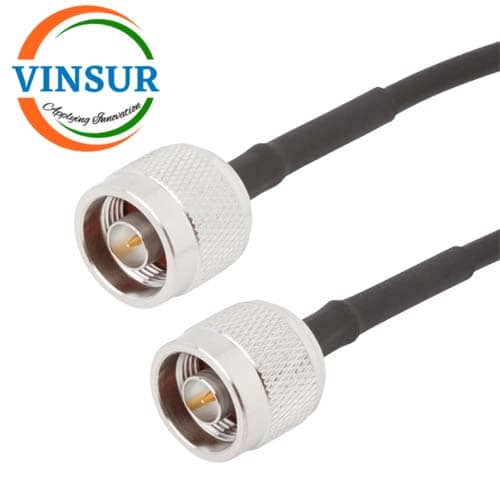

VSW- 611001103A-1D – RF Cable Assembly – N Male Straight to N Male Straight for LMR240-UF Cable of Length 1m
PART NO:-VSW- 611001103A-1D
- RF CABLE ASSEMBLY
- N-Type to N-Type Cable Assembly
- 50Ω LMR240-UF
- Male to Male
Applications:
- Portable Tactical & Emergency Deployments
- Lab Testing & VNA Calibration Leads
- PTZ Cameras & Motorized Gimbal Tracking
- Vehicle Door & Trunk Routing
- Production Line Automated Testing
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | N |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | 6GHz |
| Impedance | 50 Ω |
| VSWR | 1.5:1 |
| CABLE SPECIFICATION | |
| Cable Type | LMR240-UF |
| Cable Diameter | 6.10 mm |
| Frequency | 5.8GHz |
| Impedance | 50Ω |
| Cable Type | 1Meter |
| Temperature Rating | -40°C ~ +85°C |
