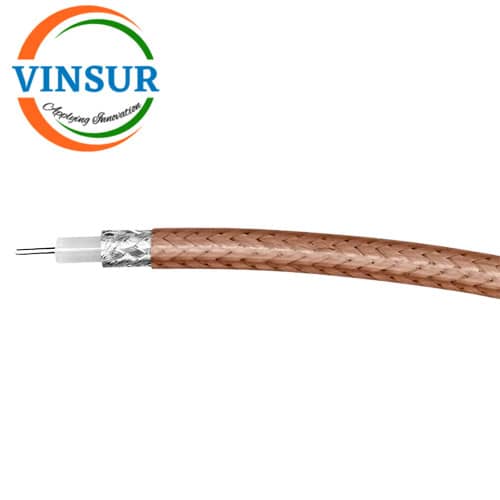

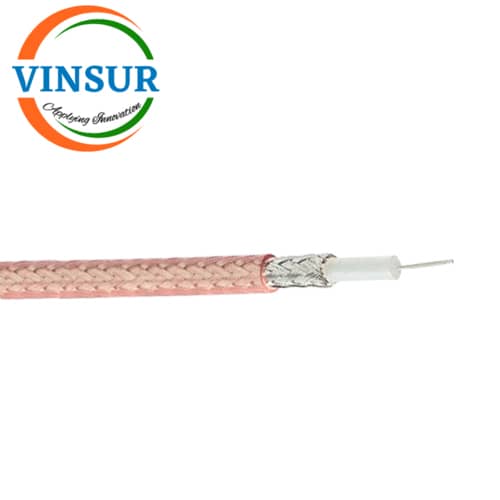

RG179 Coaxial Cable(75Ω)
P/N : VSW-CB-RG179-1B
- RG179 Coaxial Cable
- 75Ω
- Max Frequency (GHz) -DC to 3GHz
Applications:
- Medical Devices: Internal wiring for diagnostic tools and monitoring machines requiring stable high-frequency signals under sterilization.
- Video and Audio Security: CCTV systems, security cameras.
- Computer and Communications: High-frequency data transmission and internal computer networking setups.
Click Here to get Data Sheet
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Inner Conductor | 7 Strand Silver Plated Copper | 7/0.102mm |
| Dielectric | PTFE | 1.6mm |
| Overall Braid | Silver Plated Copper | 2.06 mm |
| Jacket | FEP(Brown) | 2.54mm |
| ELECTRICAL SPECIFICATIONS | |
| Frequency | DC-3GHz Max |
| Impedance | 75Ω |
| Capacitance | pF/m 64 |
| Velocity of Propagation | 70% |
| Max Voltage | 1,200 VMS |
| Temperature Storage | -40/+200C |
| MECHANICAL SPECIFICATIONS | |
| Bend Radius (Installation) | 15mm |
| Bend Radius (Repeated) | 25mm |
| Weight | 0.012kg/m |
| Diameter | 0.10 Inches(2.54mm) |
