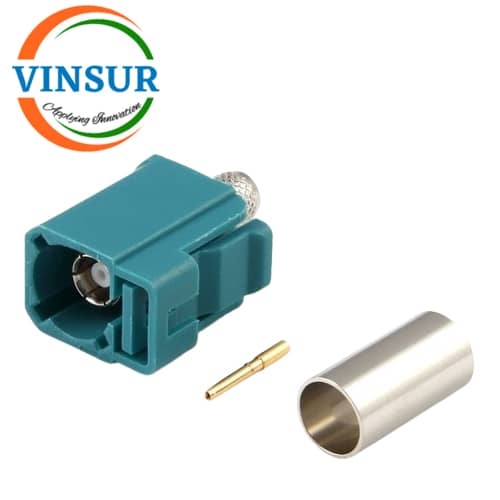

VSW-FAKRA-FS-58Z -- RF CONNECTOR - 50 OHMS FAKRA SMB FEMALE STRAIGHT CRIMP TYPE FOR RG 58 CABLE(Water Blue)

Click to enlarge

VSW-FAKRA-FS-58Z — RF CONNECTOR – 50 OHMS FAKRA SMB FEMALE STRAIGHT CRIMP TYPE FOR RG 58 CABLE(Water Blue)

RF CONNECTOR: 50Ω
FAKRA FEMALE
STRAIGHT
CRIMP TYPE
RG-58 CABLE

Click Here to download the datasheet

SKU: VSW-FAKRA-FS-58Z Category: FOR RG 58 CABLE Tags: Fakra Connectors, For RG58 cable, RF connectors

Description
Reviews (0)

Description

FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

CONNECTOR SPECIFICATIONS
Gender	Jack (Female)
Orientation	Straight
Termination Style	Cable – Crimp
Impedance (Ohms)	50Ω
Body Finish	Nickel
Body Material	Zinc Die cast
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Insulator Material	PTFE
Cable Type	RG58
Max Frequency (GHz)	DC to 4GHz
VSWR	1.6 (-13dB) Max
Insertion Loss	0.45 dB
Polarity	Standard
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
FAKRA Key code	Z – Water Blue
