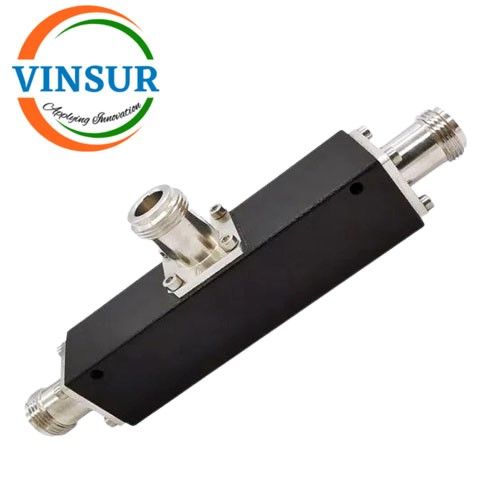

VSW-PT-727-XX-160-NF6D–Power Tapper (698-2700MHz , 6dB , 200W , N-female)
P/N :-VSW-PT-727-XX-160-NF6D
- RF Power Tapper
- N-Female
Applications:-
- Wideband Frequency Covering 698-2700MHz
- N Female connector with Power Handling 200W
- Low Insertion Loss, Low VSWR and High Isolation
- Stable Low PIM -161dBc@2x43dBm
Click Here to get Data Sheet
Description
| Tapper Value(dB) | 3 | 5 | 6 | 7 | 8 | 10 | 13 | 15 | 20 | 30 |
| Split Ratio(dB) | 2:1 | 3:1 | 4:1 | 4:1 | 6:1 | 10:1 | 20:1 | 30:1 | 100:1 | 1000:1 |
| Coupling values(dB) | 4.8 | 6.1 | 7.0 | 7.8 | 8.5 | 10.5 | 13 | 15.3 | 20.1 | 30.1 |
| Freq(MHz) | 698-960/1700-2700MHz | |||||||||
| VSWR | ≤1.35 | ≤1.35 | ≤1.35 | ≤1.35 | ≤1.35 | ≤1.30 | ≤1.30 | ≤1.30 | ≤1.30 | ≤1.30 |
| PIM Rating(dBc) | -160dBc@2x43dBm | |||||||||
| Power Rating(W) | 200W (average Per Port) | |||||||||
| Impedance | 50 Ω | |||||||||
| Connector | N-female | |||||||||
| Colour | Black | |||||||||
| Relative Humidity | 5-95% | |||||||||
| Operating Tem(℃) | -35°C to +75°C | |||||||||
| Weight(kg) | 0.20 | |||||||||
