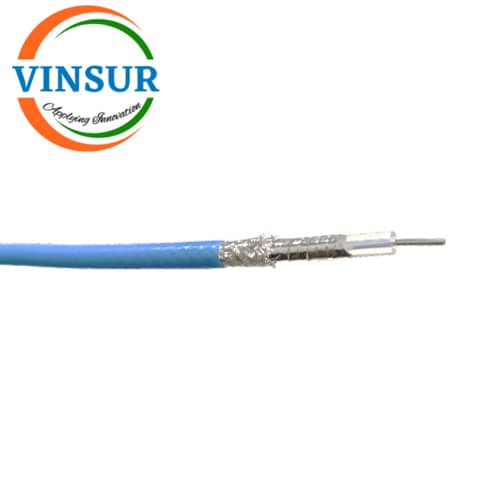

Teflex®-402 Flexible Low Loss Cable
Applications:
- Microwave & RF Equipment: Connecting components inside radar, satellite communications, and base stations.
- Test & Measurement: Jumper cables and test bench setups requiring stable phase performance and high frequency response.
Click Here to get Data Sheet
Description
| CONSTRUCTION SPECIFICATION | ||
| Item | Material | |
| Inner Conductor | Solid Silver- Plated Copper | 0.036’’ |
| Inner Shield | Silver plated copper flat ribbon | – |
| Dielectric | Solid PTFE | 0.118’’ |
| Outer Conductor | Silver plated copper braid | 0.139’’ |
| Jacket | FEP (BLUE) And flame retardant | 0.160’’ |
| ELECTRICAL SPECIFICATION | |
| Cut-off Frequency | 34GHz |
| Impedance | 50 ohms |
| Velocity % | 69.5 |
| Capacitance pf per ft | 29.3 |
| Shielding | >100dB |
| Minimum Static Bend Radius (in) | 0.500” (12.7) in(mm) |
| Weight (lbs./ft) | 0.033 (0.049kg/m) |
| Temperature Range | -65°C to +125°C |
| Operating Voltage | 1.9 kV Volts RMS |
| Delay | 1.46 (4.80) ns/ft (ns/m) |
