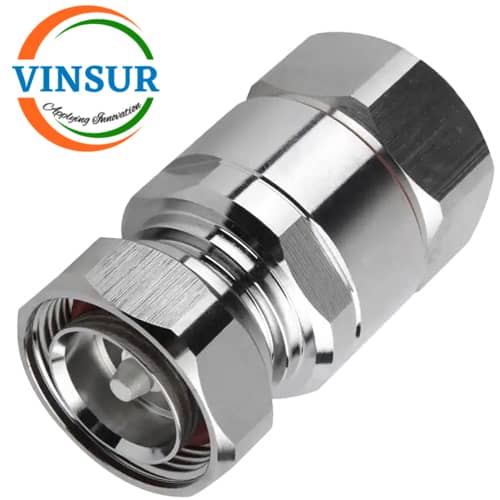

11D1102U — RF CONNECTOR – 50OHMS , 7-16 MALE , STRAIGHT , CLAMP TYPE , 3/8″ INCH CABLE
- RF CONNECTOR: 50Ω
- 7-16 Connectors
- Straight
- 3/8 inch Cable
- Plug (Male)
Click Here to download the datasheet
Description
The 7-16 series name derives from the metric dimensions of the connector interface: 7mm OD of inner contact, 16 mm ID of outer contact. These connectors provide superior performance for both return loss and Intermodulation distortion (IMD).
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Type | 7/16 |
| Orientation | Straight |
| Contact Termination | Solder |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Cable Type | 3/8 inch Cable |
| Max Frequency (GHz) | DC-3GHz |
| Â Voltage Rating | 375V |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
