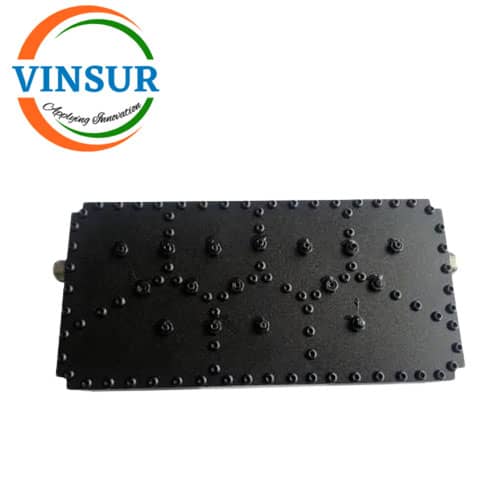

VSW-BPF-1316-SMAF–VHF Band Pass Filter(136 to 164MHz)
P/N :-VSW-BPF-1316-SMAF
- RF Filter
- UHF & VHF Cavity Filter
- 136-164MHz
- Â SMA Female
Applications:-
- VHF Band Covering 136-164MHz
- Low VSWR, Low Insertion Loss
- High Rejection, Low Power Handling
- Connectors can be Customized
Description
| SPECIFICATION | |
| Frequency(MHz) | 136-164MHz |
| BW(MHz) | 28MHz |
| Insertion Loss | ≤2.6dB |
| Ripple in pass band | ≤1.5dB |
| Return Loss | ≥15dB |
| Rejection | ≥40dB@50~131MHz≥40dB@169~350MHz |
| Impedance | 50 ohm |
| Max Input Power (W) | 20W |
| Operating Temperature (deg) | -20～+50℃ |
| Connector | SMA-female |
| Finish | Black-plated |
| Relative Humidity | 5%-95% |
